Investigating issues

SonarQube for IDE can help developers by letting them perform local analyses to check their code before pushing it back to the SCM. While running an analysis, SonarQube for IDE raises an issue every time a piece of code breaks a coding rule.

Usually, a first analysis is performed as soon as one of the supported files is opened. Then, regular analyses are triggered when the editor content changes and/or when the file is saved.

This page describes how to find and investigate issues in your IDE.

Defining issues

An issue is a problem in your code that violates one of the Sonar rules. Issues found in code are linked to coding attributes and software qualities that determine the overall severity of an issue. Software qualities determine the overall severity of an issue that feeds back into the overall status of your code; please see the SonarQube Server or SonarQube Cloud documentation for more information about quality standards and new code.

Each issue is linked to one coding attribute which is associated with one or more software qualities; each software quality has a level of severity. See Software qualities for more information.

To communicate the code attributes, software qualities, and severity of issues found in your code, SonarQube for VS Code displays them in the SonarQube Rule Description webview as described below.

Finding issues

For most issues, SonarQube for VS Code provides information about why there is an issue and offers one or more actions to Fix your issue. Issues can be found in 3 places:

1. In the VS Code Text Editor, identifiable by the classic squiggles underlining issues in the code.
2. In the Tooltip, recommended action(s) can be found by clicking on the light bulb in the left margin of the code explorer view.
3. In the PROBLEMS panel, select your issue to highlight the issue-causing code in the Editor. Right-clicking on the issue opens the same tooltip action as described above.

Security hotspots are found in the SONARQUBE > SECURITY HOTSPOTS view panel. See the Security hotspots page for more details.

Injection vulnerabilities work a bit differently. At the Tooltip, select Show all locations to view the execution flow in the SONARQUBE ISSUE LOCATIONS view. See the Injection vulnerabilities page for more details.

Opening issues in the IDE

Understanding issues in context is a helpful way to address problems more effectively. Beginning in SonarQube Server 10.3, on SonarQube Cloud, and in SonarQube Community Build, it is possible to open all issues in your IDE, including taint vulnerabilities. Using the Open in IDE feature includes an automated connected mode setup to help with the process.

In your instance of SonarQube Server or SonarQube Community Build, or on SonarQube Cloud:

1. Navigate to your Project > Issues page,
2. select an issue’s detail view,
3. and select the Open in IDE button as an authenticated user to edit the issue in your IDE.

It’s best if your project is already open in the appropriate IDE and bound to the server using connected mode; if not, you will be prompted to set up a new connection and/or bind your project using the automatic connected mode setup feature.

If you’ve already fixed the issue in your code, SonarQube for IDE will not be able to find it; only the matching code will be highlighted. In this case, check that recent changes have been analyzed by SonarQube (Server, Cloud) or SonarQube Community Build, then check the documentation on the SonarQube Server, SonarQube Cloud, or SonarQube Community Build Issues page for details about managing your issues on the server.

Please see the Connected mode documentation to bind your project to an instance of SonarQube (Server, Cloud) or SonarQube Community Build. And if you have troubles with the automatic connected mode setup, we identified the most common errors for Troubleshooting connected mode setup.

SonarQube (Server, Cloud) will offer AI-generated fix suggestions for issues detected in your code when AI CodeFix is enabled on your project. You can view the suggestions as a diff view directly in your IDE by selecting View Fix in IDE from the Issues page in SonarQube (Server, Cloud).

The process is similar to selecting the Open in IDE button: it’s best to set up connected mode beforehand. Otherwise, you’ll be prompted to set up a new connection and/or bind your project using the automatic connected mode setup feature.

SonarQube (Server, Cloud) will offer AI-generated fix suggestions for issues detected in your code when AI CodeFix is enabled on your project. You can view the suggestions as a diff view directly in your IDE by selecting View Fix in IDE from the Issues page in SonarQube (Server, Cloud).

The process is similar to selecting the Open in IDE button: it’s best to set up connected mode beforehand. Otherwise, you’ll be prompted to set up a new connection and/or bind your project using the automatic connected mode setup feature.

Focusing on new code

The Focus on New Code feature works when SonarQube for VS Code is running in either connected mode or standalone mode. As mentioned above, new code is defined differently in each mode. Please see the New code page to understand your options when using a New Code Definition.

Focus on new code in connected mode

Setting your focus on new code has these prerequisites running in Connected mode:

• Your local project must be bound to a SonarQube (Server, Cloud) or SonarQube Community Build project.
• The new code definition must be defined in SonarQube (Server, Cloud) or SonarQube Community Build using a Previous version, Number of days, or Specific analysis.
• The Reference branch new code definition is not supported. Please check the documentation in SonarQube Server,  SonarQube Cloud, or SonarQube Community Build to properly set your new code definition.

By default, the Focus on New Code feature is set to overall code when you set up a new connection and establish the project binding; the last saved setting persists through restarts.

Focus on new code in standalone mode

When not running in connected mode, the SonarQube focus can still be used to highlight only issues found in new code. By default, the Focus on New Code feature is set to overall code when you open SonarQube for VS Code for the first time; the last saved setting persists through restarts.

Change your SonarQube focus

Setting your Focus on New Code is easy. To activate or deactivate this mode, select either the eye icon from the SONARQUBE panel or, when you select SonarQube focus: in the VS Code Status Bar, a quick pick window will pop up allowing you to switch focus.

Additionally, you can select or deselect the Focus on New Code mode from the VS Code > Settings… > Settings > Extensions > SonarLint > User settings menu.

The SonarQube views

The SONARQUBE SETUP view container in VS Code

CONNECTED MODE

Here you can find your active connections and set up new connections if needed. Please see the Connected mode page to learn about the Sonar solution.

RULES

Sonar Rules can individually be turned on or off while running SonarQube for VS Code in standalone mode. Simply go to SONARQUBE SETUP > RULES view in the VS Code Activity Bar and deactivate or activate rules at will. Each rule is clearly marked as on or off, and it's possible to filter the visible list by an Active, All, and Inactive status.

The RULES view is only visible while running SonarQube for VS Code in standalone mode because, when your project is bound to SonarQube (Server, Cloud) or SonarQube Community Build using Connected mode, the rule set is managed on the server side as defined by the quality profile.

SONARQUBE ISSUE LOCATIONS

If your issue is an injection vulnerability or a security hotspot with multiple locations, the security issue’s Flow will be shown here. The view will only appear when you select an injection vulnerability or security hotspot in the SONARQUBE panel. If there are no issues with secondary locations to report, the view is hidden.

Please see the documentation on Injection vulnerabilities and Security hotspots for more information.

Editor Groups

Code Editor

In the VS Code code editor, colored waves (squiggles) underline Warning and Information issues. By default, Hint issues are marked by an ellipsis at the beginning of the line. Hovering over the squiggles will reveal code actions and more information about the issue.

SonarQube Rule Description

The SonarQube Rule Description Editor Group will display a brief explanation of the rule, along with a noncompliant and compliant code example.

Simply right-click an issue in the PROBLEMS Panel, and choose SonarQube: Show issue details for `...` to open the SonarQube Rule Description webview. Here you will find a brief explanation of the rule, along with a noncompliant and compliant code example.

For some SonarQube Rule Descriptions, you can visualize a diff view for the noncompliant and compliant code sample, which should help you fix your issue.

An issue’s coding attribute, software qualities, and severity are found when opening the SonarQube Rule tab. Below the rule title, you will find the coding attributes that highlight an issue's classification. Check the glossary for details about coding attributes, and the Software qualities page to better understand how they help classify your issue.

When in Connected Mode

If you’re running SonarQube for VS Code while in connected mode with SonarQube Server or SonarQube Community Build, your view will change according to the server settings. Standard Experience mode encompasses the use of rule types such as bugs, code smells, and vulnerabilities. Alternatively, if SonarQube Server is set to Multi-Quality Rule mode, you will more accurately represent the impact an issue has on all software qualities.

Please see the SonarQube Server and SonarQube Community Build articles for detailed information about the available rule modes.

Panels

PROBLEMS

Ideally, the team wouldn't introduce any new issues (any new technical debt) when writing code. But in real life, it's not always possible to code without creating new technical debt, and sometimes it's just not worth it.

Selecting issues from the PROBLEMS panel will jump you to the line of code in your file where the code is highlighted. Right-clicking on an issue will reveal fixes that are available for that issue.

Each issue’s severity is indicated by the icon to the left of the description. Selecting an issue or hovering over the severity icon is another way to reveal the Show fixes lightbulb.

OUTPUT

This panel contains the SonarQube for VS Code logs. To view them in more detail and improve troubleshooting, you must enable the Show Verbose Logs and select the Show Analyzer Logs options in the Extensions settings.

Please see the Troubleshooting page for complete details.

To better control the way you see and manage issues, check out the VS Code documentation on Fixing Issues for quick ways to fix problems. Also, look at the article about running SonarQube for VS Code in Connected mode for details about integrating your local analysis with your SonarQube (Server, Cloud) or SonarQube Community Build analysis.

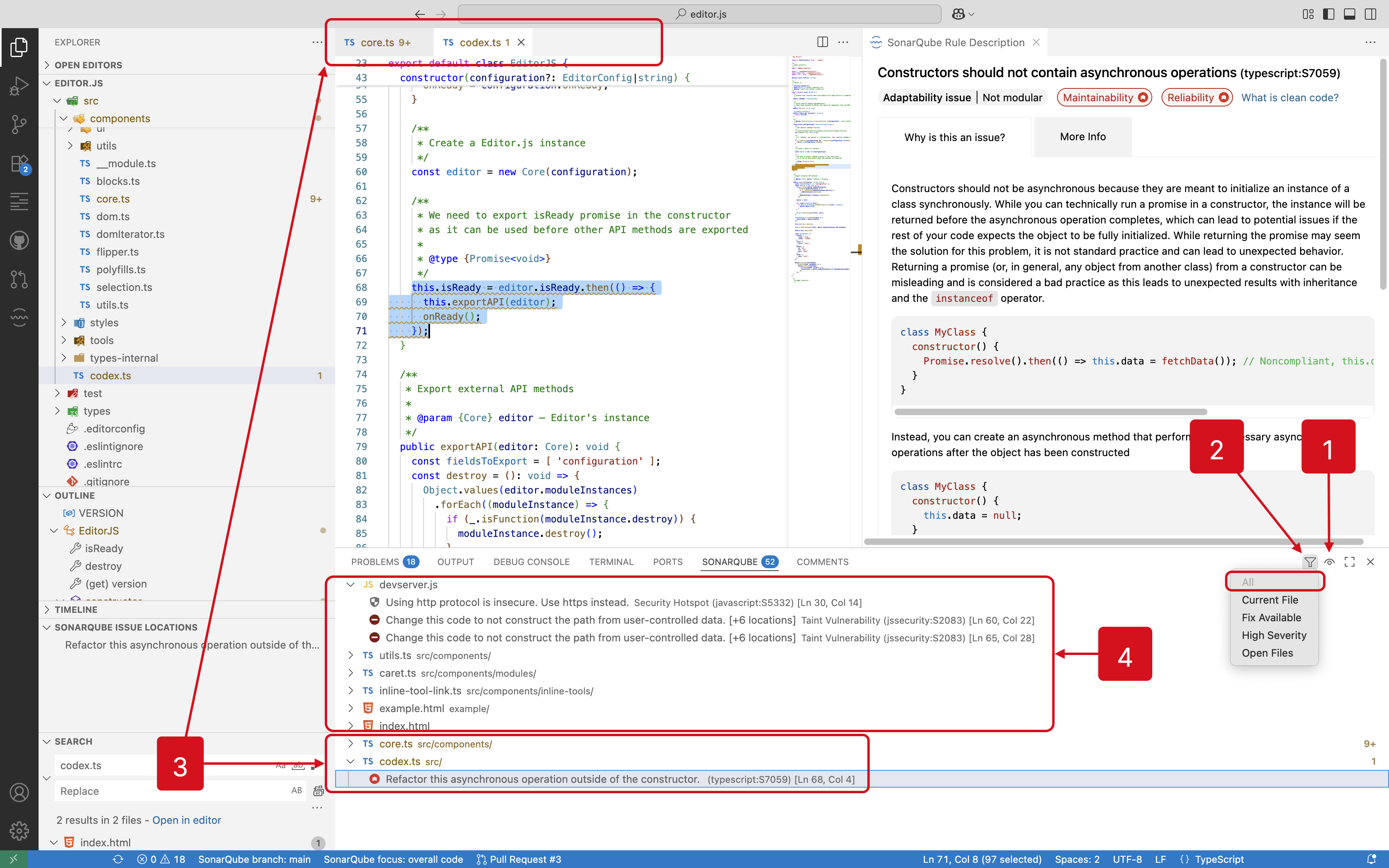

SONARQUBE

Security hotspots and taint vulnerabilities are listed in the SONARQUBE panel. Select an issue to open either the Security Hotspot Details or SonarQube Rule Description windows. If multiple locations are impacted by the issue, the Explorer > SONARQUBE ISSUE LOCATIONS view will open to reveal the injection flow.

For a full list of Security Hotspots, run SonarQube: Scan for Hotspots in Folder from the command palette (Ctrl + Shift + P on Windows/Linux or Command + Shift + P on MacOS).
