Creating and configuring your SonarQube Server project connected to Azure DevOps

Once the global-level integration with Azure DevOps is complete, you can create your SonarQube Server project by importing your Azure DevOps repository. You can also create it manually but you won’t benefit from the integration features.

Before your first repository import

On your first repository import, you will have to insert an Azure Personal Authentication Token (PAT) so that you are able to list the repositories you have access to in Azure DevOps.

Proceed as follows to create your Azure PAT:

1. Log in to Azure DevOps.

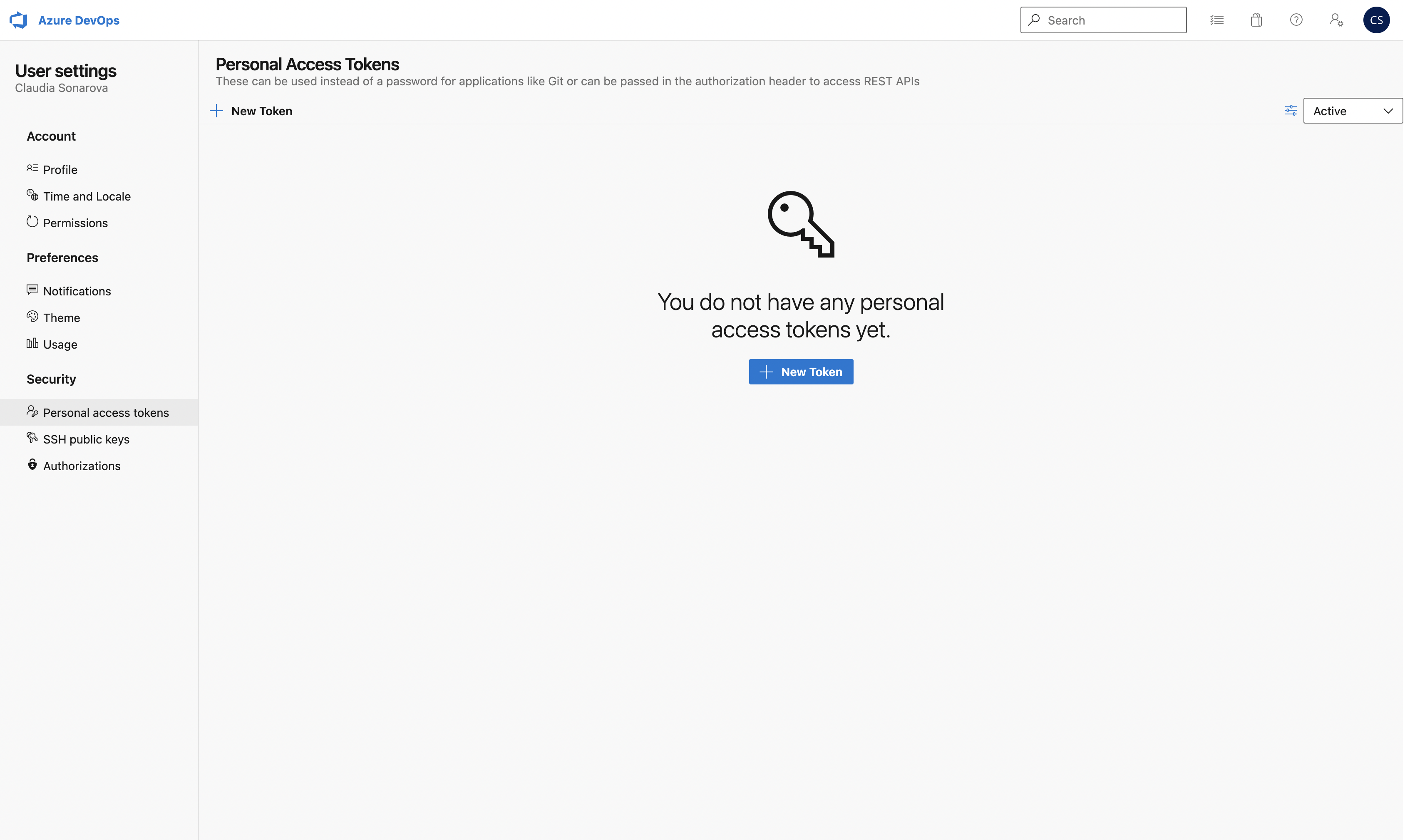

2. Go to your Azure DevOps organization User settings > Personal access tokens and select + New token.

3. On the next page, under Scopes, make sure that you specify at least the scope Code > Read & write.

4. Click Create to generate the token.

5. When the personal access token is displayed, copy it (you will have to paste it during your first repository import as described below).
You may ask your administrator to encrypt this token.

Importing your Azure DevOps repository

To import your repository, you need the Create Projects permission in SonarQube Server.

The so-created SonarQube Server project is “bound” to its Azure DevOps repository. With a bound project:

• You can see in the SonarQube Server UI with which repository the project is associated.
• You benefit from pull request integration features.

To import an Azure DevOps repository into SonarQube Server:

1. In the top navigation bar of SonarQube Server, select the Projects tab.
2. In the top right corner, select the Create Project > From Azure DevOps button.

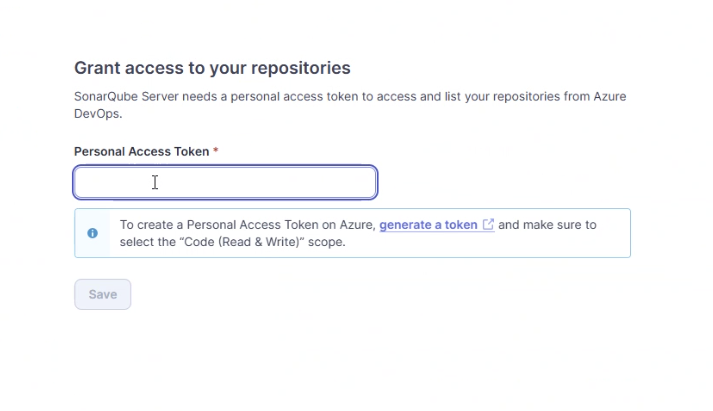

3. If it's your first repository import, you'll be prompted to enter the Azure PAT you created as described in Before your first repository import above. Enter your PAT and select Save.

4. If your instance has multiple Azure DevOps Integrations, select the Azure DevOps configuration from which you want to import your project.

5. Select the repository to be imported.

Importing a monorepo

Starting in Enterprise Edition, you can import an Azure DevOps monorepo. See Managing the projects of a monorepo.

Creating your SonarQube Server project manually

You need the Create Projects permission in SonarQube Server.

Proceed as follows:

1. In the top navigation bar of SonarQube Server, select the Projects tab.
2. In the top right corner, select the Create Project > Local Project button.

Configuring the project analysis parameters

You can configure analysis parameters at different levels:

• In your build environment.
• In the sonar-project.properties file.
• In SonarQube Server UI.
• At the Azure pipeline level.
  Parameters set at the pipeline level have precedence over parameters set at other levels.

For general information on setting up analysis parameters at the global and project levels, see Analysis parameters and the respective SonarScanner section: Maven, Gradle, .NET, or CLI.
