# Setup in SonarQube Server

This is the second step of SAML authentication setup with Ping Identity. For an overview of the complete setup, see [introduction](https://docs.sonarsource.com/sonarqube-server/instance-administration/authentication/saml/ping-identity/introduction "mention").

Proceed as follows:

1. Go to **Administration > Configuration > General Settings > Authentication> SAML**.
2. Select **Create Configuration**.

<figure><img src="broken-reference" alt="Select the Create Configuration button to create a new SonarQube configuration for SAML"><figcaption></figcaption></figure>

3. Fill in the fields as explained in the table below.
   * Some fields must be filled with the values set in the application created in PingOne (or PingFederate) during the setup in Ping Identity (see [setup-in-ping-identity](https://docs.sonarsource.com/sonarqube-server/instance-administration/authentication/saml/ping-identity/setup-in-ping-identity "mention")). To retrieve these values, retrieve the application in PingOne as follows: go to **Applications > Applications** and open the application’s detail page.
   * Some fields must be filled with values retrieved from the metadata file downloaded in **Step 2** of [setup-in-ping-identity](https://docs.sonarsource.com/sonarqube-server/instance-administration/authentication/saml/ping-identity/setup-in-ping-identity "mention").

<table><thead><tr><th width="224">Field in in SonarQube</th><th>Description</th></tr></thead><tbody><tr><td>Application ID</td><td>In the application’s <strong>Configuration</strong> tab: <strong>Entity ID</strong>.</td></tr><tr><td>Provider ID</td><td>Is retrieved from the downloaded metadata file. See below.</td></tr><tr><td>Provider Name</td><td>Name of the Identity Provider displayed in in SonarQube login page when SAML authentication is active.</td></tr><tr><td>SAML Login URL</td><td>Is retrieved from the downloaded metadata file. See below.</td></tr><tr><td>Identity provider certificate</td><td>Is retrieved from the downloaded metadata file. See below.</td></tr><tr><td>SAML user login attribute</td><td><code>login</code></td></tr><tr><td>SAML user name attribute</td><td><code>name</code></td></tr><tr><td>SAML user email attribute</td><td><code>email</code></td></tr><tr><td>SAML group attribute</td><td><code>group_names</code></td></tr></tbody></table>

<details>

<summary>Retrieving values from the downloaded metadata file</summary>

1. Open the metadata file (`saml2-metadata-idp-<UUID>.xml`) you downloaded in **Step 2** of [setup-in-ping-identity](https://docs.sonarsource.com/sonarqube-server/instance-administration/authentication/saml/ping-identity/setup-in-ping-identity "mention"). This file contains your X.509 certificate.

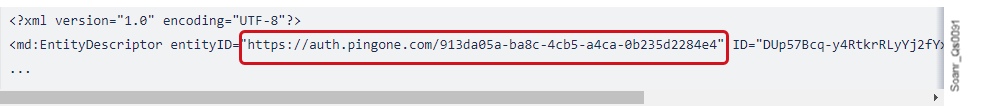

2. Find the `<md:EntityDescriptor...` node and look for the `entityID` attribute. Set this value as your SonarQube Server’s **SAML Provider ID**.

<figure><img src="broken-reference" alt="Find the <md:EntityDescriptor... node in Ping Identity&#x27;s metadata file"><figcaption></figcaption></figure>

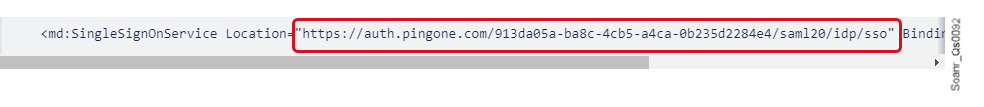

3. Find the first instance of `<md:SingleSignOnService...` node and look for the `Location` attribute. Set this value as your in SonarQube Server’s **SAML Login URL**.

<figure><img src="broken-reference" alt="Find the first instance of <md:SingleSignOnService... node in Ping Identity&#x27;s metadata file"><figcaption></figcaption></figure>

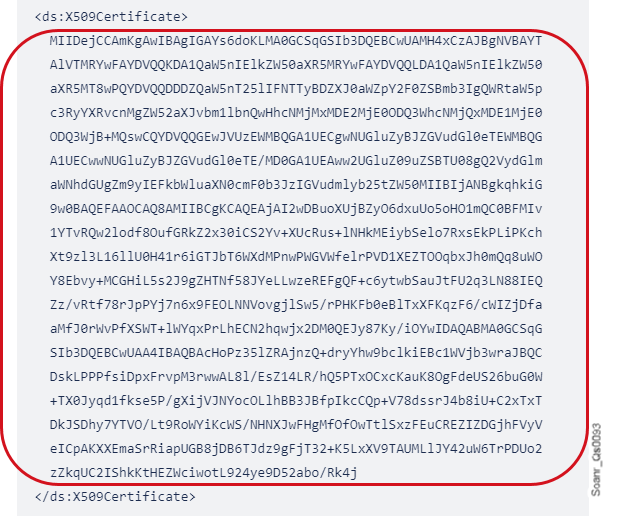

4. Find the `<ds:X509Certificate>` node. Set its contents as the in SonarQube Server’s **Identity provider certificate**. Note that end-of-line spaces and new line characters are fine, it does not need to be all on one line of text.

<figure><img src="broken-reference" alt="Find the <ds:X509Certificate> node in the Ping Identity&#x27;s metadata file"><figcaption></figcaption></figure>

</details>

4. Save the configuration.
5. Before enabling SAML authentication on in SonarQube Server, you can verify that the configuration is correct by selecting **Test Configuration**. This will initiate a SAML login and return useful information about the SAML response obtained from the identity provider.
6. Select **Enable configuration**.

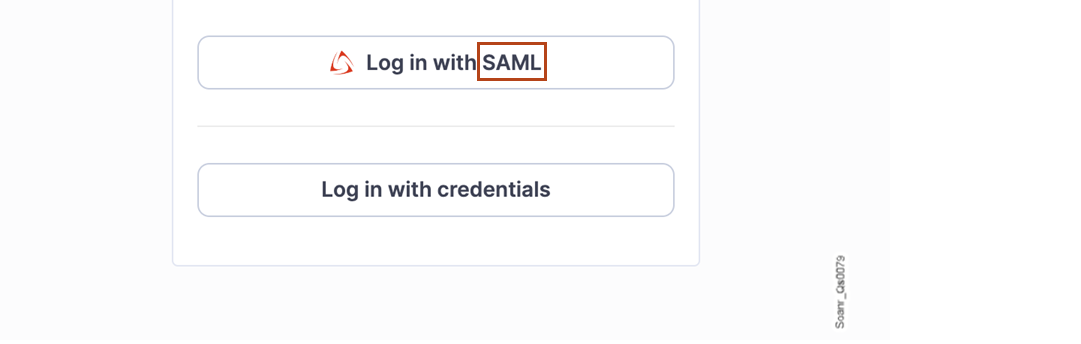

7. Check that the SonarQube Server login form now contains a SAML login button. The text highlighed in the figure below can be configured through the **Provider Name** field of the SAML configuration in SonarQube Server.

<figure><img src="broken-reference" alt="SonarQube Server login form with login button for SAML"><figcaption></figcaption></figure>
