# Setup in Microsoft Entra ID

This page describes how to register SonarQube Server 2026.5 in Microsoft Entra ID.

This is the first step of SAML authentication setup with Microsoft Entra ID. For an overview of the complete setup, see [Introduction to SAML with Microsoft Entra ID](/sonarqube-server/instance-administration/authentication/saml/ms-entra-id/introduction.md).

## Step 1: Create the SAML application for SonarQube Server in MS Entra ID <a href="#create-app" id="create-app"></a>

1. In **Microsoft Entra ID**, go to **Manage** > **Enterprise applications** > **All applications**.
2. Select **New application** and then **Create your own application**.

{% hint style="warning" %}
Make sure you choose "Create your own application". Do not select the non-affiliated "Sonarqube" Microsoft Entra Gallery app, which contains configurations that may prevent proper integration.
{% endhint %}

<figure><img src="broken://spaces/KXW79zfYFiA8incTvwZK/files/8kQ9AvHnzagyLjnAFqvQ" alt="Select New application to create your own application"><figcaption></figcaption></figure>

3. Fill in the name and select the **Integrate any other application you don’t find in the gallery** option.

<figure><img src="broken://spaces/KXW79zfYFiA8incTvwZK/files/P1lMLa73PgfprAeNCFlL" alt="In the Create your own application pane, select Integrate any other application you don&#x27;t find in the gallery option"><figcaption></figcaption></figure>

4. Select **Create**.

## Step 2: Configure the application for SonarQube Server in MS Entra ID <a href="#configure-app" id="configure-app"></a>

1. Go to **Single sign-on** > **SAML**. The **Set up Single Sign-On with SAML** page opens

<figure><img src="broken://spaces/KXW79zfYFiA8incTvwZK/files/ZcIog5lt6xQH8qxsH3jv" alt="Select the SAML button"><figcaption></figcaption></figure>

2. In the **Basic SAML Configuration** section of the page, select **Edit**, fill in the **Identifier** and the **Reply URL** fields as described below, and save. To enable SP-initiated SSO when accessing SonarQube from the Entra ID portal, also fill in the optional **Sign-on URL** field.

<details>

<summary>Basic configuration fields</summary>

<table><thead><tr><th width="106">Field</th><th width="547">Description</th><th>Required</th></tr></thead><tbody><tr><td>Identifier</td><td>Identifier of the SonarQube application in Entra ID.</td><td>x</td></tr><tr><td>Reply URL</td><td><p>Must be in the format:<br><code>&#x3C;sqServerBaseUrl>/oauth2/callback/saml</code></p><p><strong>Example</strong>: <code>https://my-sonarqube.com/oauth2/callback/saml</code></p><p><strong>Note</strong>: Make sure the server base URL is correctly set in SonarQube<sup>1</sup>.</p></td><td>x</td></tr><tr><td>Sign on URL</td><td>Enables the service-provider-initiated SSO. Represents the sign-in page URL of your SonarQube instance. Must be in the format:<br><code>https://&#x3C;sqServerBaseUrl>/sessions/init/saml?return_to=/</code></td><td></td></tr></tbody></table>

1\) See [Server base URL](/sonarqube-server/instance-administration/server-base-url.md).

<figure><img src="broken://spaces/KXW79zfYFiA8incTvwZK/files/7oCIIw9NNa5YEZyypLj4" alt="Select the Edit tool in the Basic SAML configuration section"><figcaption></figcaption></figure>

</details>

3. In the **Attributes & Claims** section of the page, configure the attributes used by SonarQube Server as described below. To add an attribute, select **Add new claim**.

<details>

<summary>Attributes &#x26; claims</summary>

The table below shows possible mappings you can use for the SAML attributes used by SonarQube Server.

<table><thead><tr><th width="173">SAML attribute used by SonarQube</th><th width="231">Description</th><th width="264">Attribute in Microsoft Entra ID</th><th>Required</th></tr></thead><tbody><tr><td>Login</td><td>A unique name to identify the user in SonarQube.</td><td>Example: <code>user.userprincipalname</code></td><td>x</td></tr><tr><td>Name</td><td>The full name of the user.</td><td>Example: <code>user.displayname</code></td><td>x</td></tr><tr><td>Email</td><td>The email of the user.</td><td>Example: <code>user.mail</code></td><td><br></td></tr></tbody></table>

{% hint style="warning" %}
The NameID attribute is not used in SonarQube Server.
{% endhint %}

<figure><img src="broken://spaces/KXW79zfYFiA8incTvwZK/files/OBRqPHPNKRiXsrVIZBeC" alt="Attributes &#x26; Claims section in Microsoft Entra ID"><figcaption></figcaption></figure>

</details>

4. If you use Just-in-Time provisioning with the group synchronization feature:
   1. Verify the user groups in SonarQube Server (see see *Group synchronization* in [Overview of authentication and provisioning](/sonarqube-server/instance-administration/authentication/overview.md#justintime-provisioning))

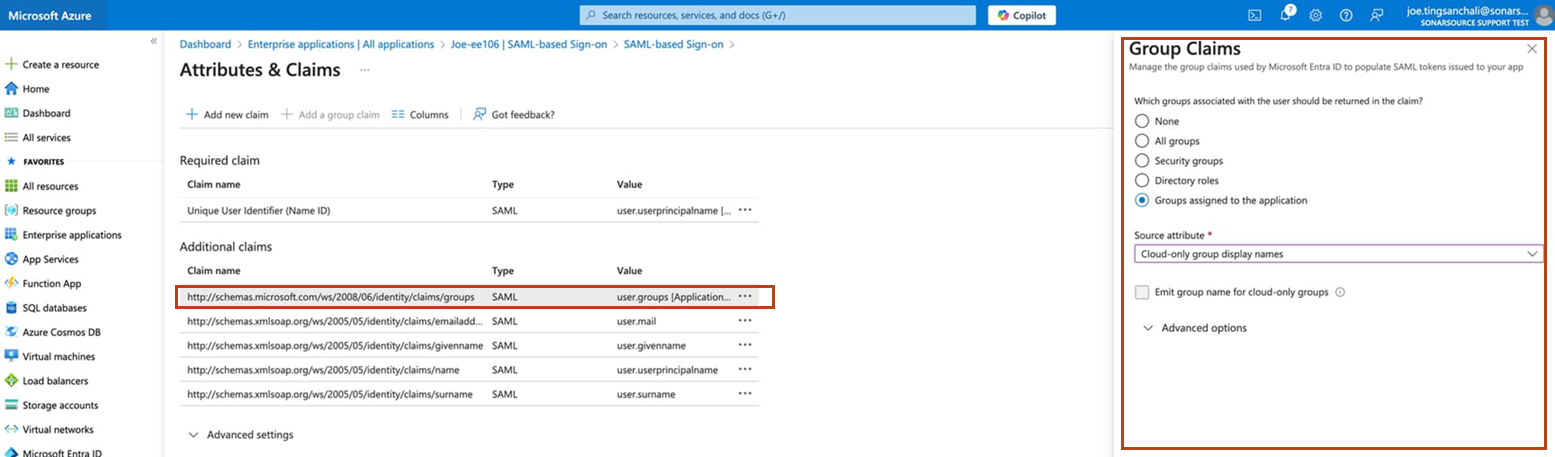

   2. Add a group attribute by selecting **Add a group claim** and do one of the following:
      * To enable the synchronization of Active Directory (AD) groups, set **Source attribute** to **sAMAccountname**.
      * To enable the synchronization of cloud-only groups, set **Source attribute** to **Cloud-only group display names.**
      * To enable the synchronization of both AD groups and cloud-only groups, set **Source attribute** to **sAMAccountname** and select the **Emit group name for cloud-only groups** checkbox.

Once done, the option to add a group will be unavailable and the group attribute will be listed with the other attributes in the **Add new claim** tab.

{% hint style="warning" %}

* Group synchronization doesn’t work with Microsoft Entra ID’s nested groups.
* Microsoft Entra ID SAML tokens have a limit regarding the number of groups a user can belong to (see the description of groups in the [Claims in SAML Token](https://learn.microsoft.com/en-us/entra/identity-platform/reference-saml-tokens#claims-in-saml-tokens) table). In such cases, you might need to reduce the number of groups the user is in.
  {% endhint %}

5. Alternatively to step 4 above, you may use SCIM user and group provisioning, see [SCIM with Microsoft Entra ID](/sonarqube-server/instance-administration/authentication/saml/scim/scim-provisioning-with-azure-ad.md).

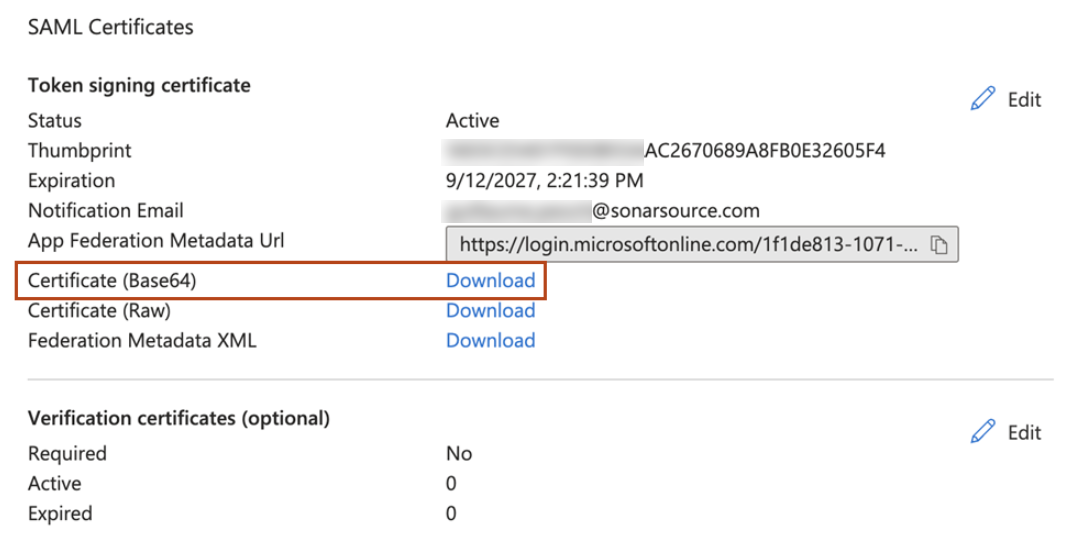

6. In the **SAML Certificates** section of the page, download **Certificate (Base64)**. (You will have to copy-paste the downloaded certificate into SonarQube Server during the setup of SonarQube Server).

<figure><img src="broken://spaces/KXW79zfYFiA8incTvwZK/files/iuIS0MrnleStJt1mYCCt" alt="SAML certificates section of Microsoft Entra ID"><figcaption></figcaption></figure>

7. Assign users and groups as follows:
   1. Go to **Manage** > **Users and groups**.
   2. Select **Add user/group** to assign users or groups to the application.
