Managing the TLS certificates on the client side
If your SonarQube server is configured with HTTPS and a self-signed certificate then you must add the self-signed certificate to the trusted CA certificates of the SonarScanner.
In addition, if mutual TLS is used then you must define the access to the client certificate at the SonarScanner level.
Managing the self-signed server certificate
Introduction to server authentication

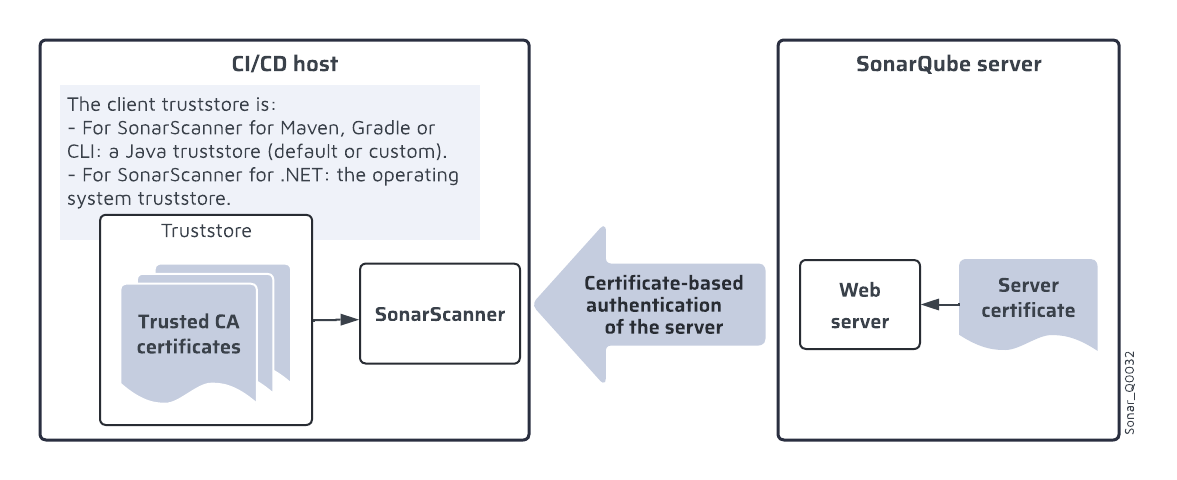

During the TLS authentication of the server, the client requests the server certificate from the server and verifies that this certificate is signed by a CA it trusts by checking its truststore. In case a self-signed server certificate is used, it must be added to the truststore of the client. The figure below shows the certificates involved in the authentication of the SonarQube server by the SonarScanner.
![](https://assets-eu-01.kc-usercontent.com:443/5e986e54-339c-01a9-7c7c-26cbc5a344d5/8e756ef9-ba63-4916-a24a-1ec6276e0713/sonarqube-server-certificate_Q0032.png?w=1177&h=480&auto=format&fit=crop)
Adding the self-signed server certificate to the trusted CA certificates
For SonarScanner for Maven, Gradle, CLI, or NPM
You can either use:
- Only for SonarScanner for Maven, Gradle, Ant, and for SonarScanner CLI before version 6.0 and SonarScanner for NPM before version 4.0: The default JVM truststore (
\jre\lib\security\cacerts
). To add the self-signed server certificate to the default truststore, use the JVM tool keytool. The instructions depend on your operating system and you will find many resources online, such as this one for Linux.
See also: Self Signed certificate of DevOps platforms. - A custom Java truststore by using the following properties:
javax.net.ssl.trustStore
or (for SonarScanner CLI from version 6.0 and SonarScanner for NPM from version 4.0)sonar.scanner.truststorePath
: path to the truststore file.javax.net.ssl.trustStorePassword
or (for SonarScanner CLI from version 6.0 and SonarScanner for NPM from version 4.0)sonar.scanner.truststorePassword
: password to the truststore.
Except for SonarScanner CLI from version 6.0 and SonarScanner for NPM from version 4.0, where you can use regular sonar properties, you must define the properties by using the SONAR_SCANNER_OPTS
environment variable.
Example (on Windows, use forward slashes as path separators):
SONAR_SCANNER_OPTS="-Djavax.net.ssl.trustStore=/repositories/tls-mutual-nginx/cacerts -Djavax.net.ssl.trustStorePassword=changeit"
For SonarScanner for .NET
Add the self-signed server certificate to the operating system truststore:
- On Linux and MacOS:
- Copy the self-signed server certificate to
/usr/local/share/ca-certificates
- Run
sudo update-ca-certificates
- Copy the self-signed server certificate to
- On Windows: use certutil.
Example:
certutil -addstore -f "ROOT" <path/to/certificate>
In addition, since SonarScanner for .NET invokes SonarScanner CLI, you must add the self-signed certificate to the Java truststore as explained above.
If running the scanner with Docker
If you need to configure a self-signed certificate for the scanner to communicate with your SonarQube instance, you can use a volume under /tmp/cacerts
to add it to the containers java trust store:
docker pull sonarsource/sonar-scanner-cli
docker run \
--rm \
-v ${YOUR_CERTS_DIR}/cacerts:/tmp/cacerts \
-v ${YOUR_CACHE_DIR}:/opt/sonar-scanner/.sonar/cache \
-v ${YOUR_REPO}:/usr/src \
-e SONAR_HOST_URL="http://${SONARQUBE_URL}" \
sonarsource/sonar-scanner-cli
Then, assuming both the cacerts
and Dockerfile
are in the current directory, create the new image with a command such as:
docker build --tag our-custom/sonar-scanner-cli .
If running the SonarQube scan GitHub Action
If you use the sonarqube-scan-action for your GitHub Action and your SonarQube server has root certificates that need to be recognized by the GitHub runner, you'll need to set the SONAR_ROOT_CERT
environment variable in GitHub.
To do this, go to your GitHub repository > Settings > Secrets and Variables and add the SONAR_ROOT_CERT
environment variable in PEM format. You can also add it at the level of your GitHub organization (recommended).
Managing the client certificates
Introduction to client authentication

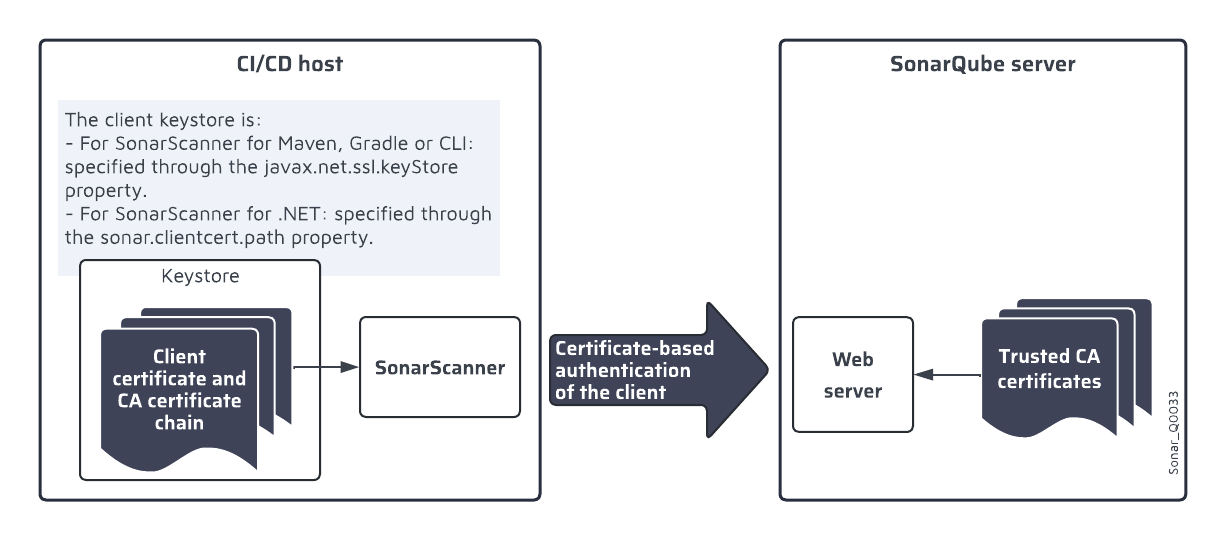

If mutual TLS is used then both the client and the server authenticate the other party. During the TLS authentication of the client, the client must provide its certificate with the corresponding CA certificate chain (intermediate and root CA certificates) to the server. The client manages its certificates in its own keystore. The figure below shows the certificates involved in the TLS authentication of the SonarScanner by the SonarQube Server.
![](https://assets-eu-01.kc-usercontent.com:443/5e986e54-339c-01a9-7c7c-26cbc5a344d5/c1d71a3e-7a82-48dd-a70f-92d833aa18c8/sonarquabe-mutual-tls-client-certificate_Q0033.png?w=1226&h=540&auto=format&fit=crop)
Defining the access to the client certificates
For SonarScanner for Maven, Gradle, CLI, or NPM
Store the client certificate and CA certificate chain in a keystore file and define the access to this file through the following properties:
javax.net.ssl.keyStore
or (for SonarScanner CLI from version 6.0 and SonarScanner for NPM from version 4.0)sonar.scanner.keystorePath
: path to the keystore file.javax.net.ssl.keyStorePassword
or (for SonarScanner CLI from version 6.0 and SonarScanner for NPM from version 4.0)sonar.scanner.keystorePassword
: password of the keystore file.
For SonarScanner for .NET
- Store the client certificate and CA certificate chain in a keystore file and define the access to this file through the following properties:
sonar.clientcert.path
: path to the keystore file, must be set in the begin step.sonar.clientcert.password:
password of the keystore file, must be set in both the begin and end steps.
- In addition, set the following options before the end step (for the SonarScanner CLI invocation):
javax.net.ssl.keyStore
: same value assonar.clientcert.path
javax.net.ssl.keyStorePassword
: same value assonar.clientcert.password
