SCIM with Okta

Automatic provisioning through SCIM is available starting in Enterprise Edition.

You can enable SCIM to automate user and group provisioning from Okta to SonarQube Server. For an overall understanding of the feature, read the SCIM overview page.

Prerequisites

• You have a working SAML configuration. See With Okta.

• The connection from the Identity Provider to SonarQube must not be blocked on the network (unlike SAML, SCIM requires a direct network connection from the Identity Provider to SonarQube).

• If your SonarQube Server is unaccessible over the public internet, you need to configure an Okta On-Premises Provisioning (OPP) agent and SCIM connector. The OPP agent acts as a bridge, enabling Okta to interact with your on-premise SonarQube instance via the SCIM protocol.

Configuring SonarQube Server

To enable SCIM provisioning in SonarQube Server:

1. Go to Administration > Authentication > SAML

2. Select Automatically provision user and group with SCIM under the Provisioning section.

3. Select Save and validate the popup if you are sure you want to enable SCIM.

SCIM is now enabled in SonarQube Server, it will handle all queries coming from Okta about users and groups.

Configuring Okta

1. In SonarQube Server, Managing your tokens from an admin account. We strongly advise that the admin account used is a local one (not SCIM managed) for safety reasons. You will use this token in Step 5 below.

2. From your Okta board, choose Your SonarQube Server application > General > App Settings and select Edit.

3. Choose SCIM and select Save. This will create a new Provisioning tab.

4. Choose the newly created Provisioning tab and click on Edit.

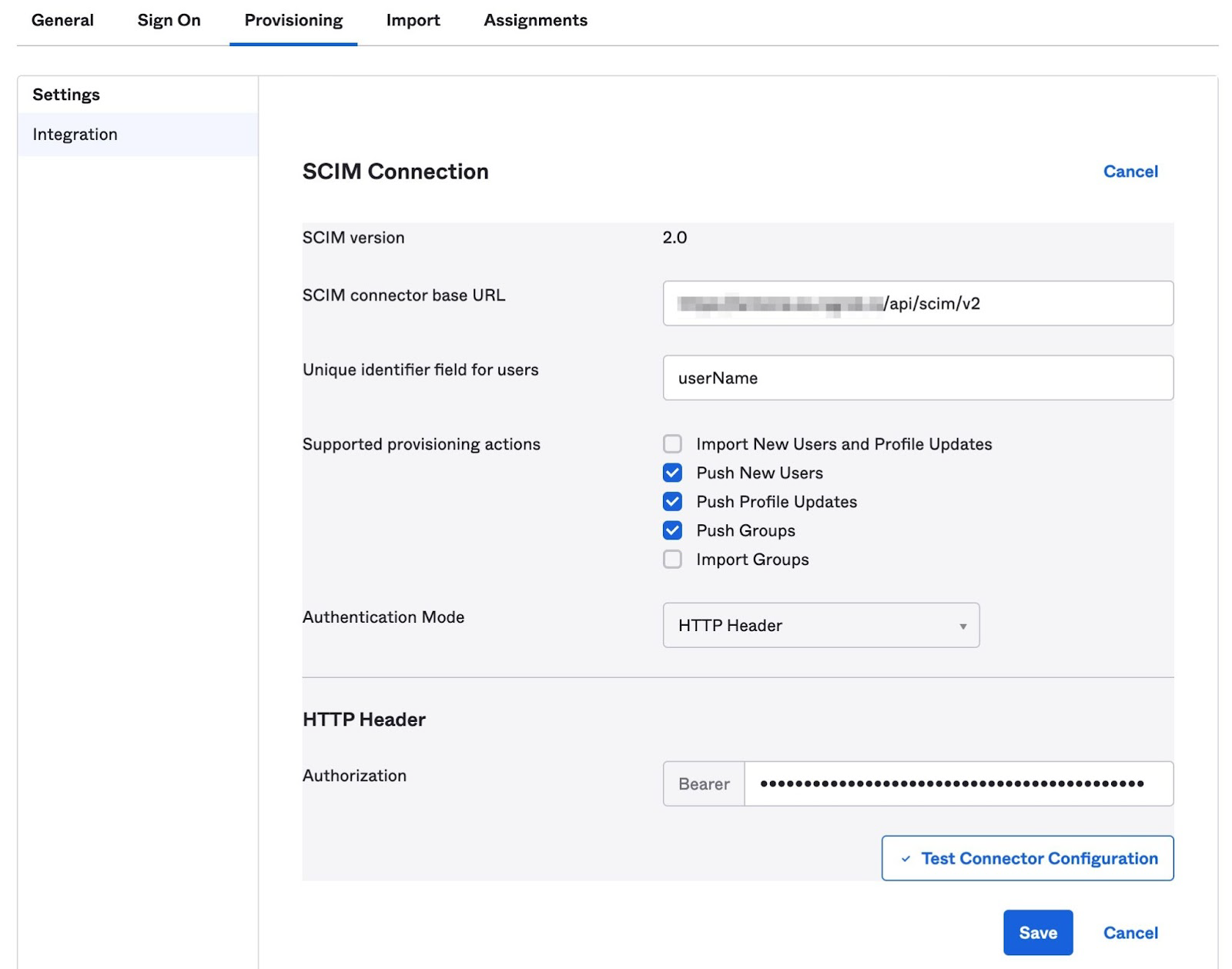

1. Configure the SCIM Connection fields as follows:

   • SCIM connector base URL: <Your SonarQube Server URL>/api/scim/v2

   • Unique identifier field for users: userName

   • Supported provisioning actions: enable Push New Users, Push Profile Updates and Push Groups, as shown in the above picture

   • Authentication Mode: select HTTP Header and copy the token generated in Step 1 into Okta’s HTTP Header > Bearer field**.**

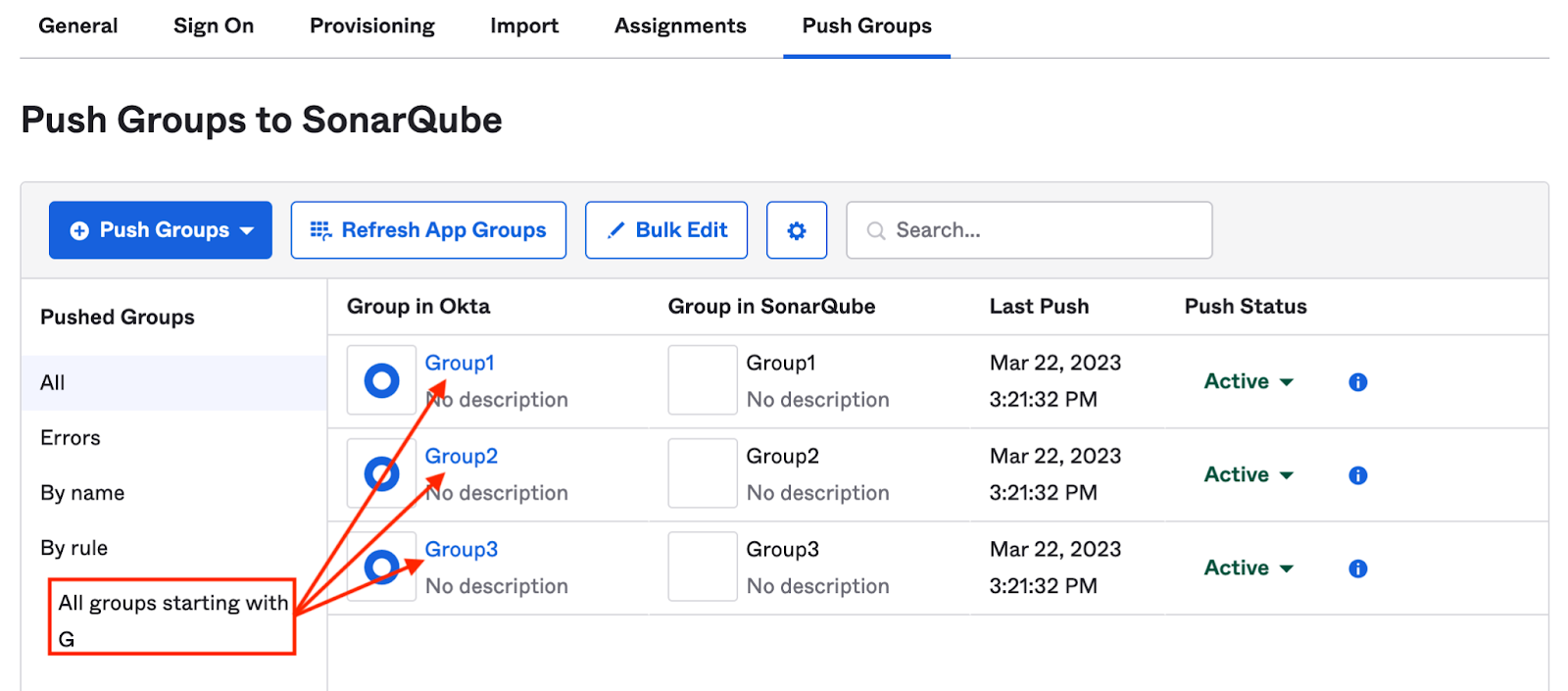

2. Click Save. Under the Push Groups tab that appears, select the groups to provision to SonarQube Server. You have two options:

   1. Select them by name, one by one, by clicking + Push Groups > Find groups by name.

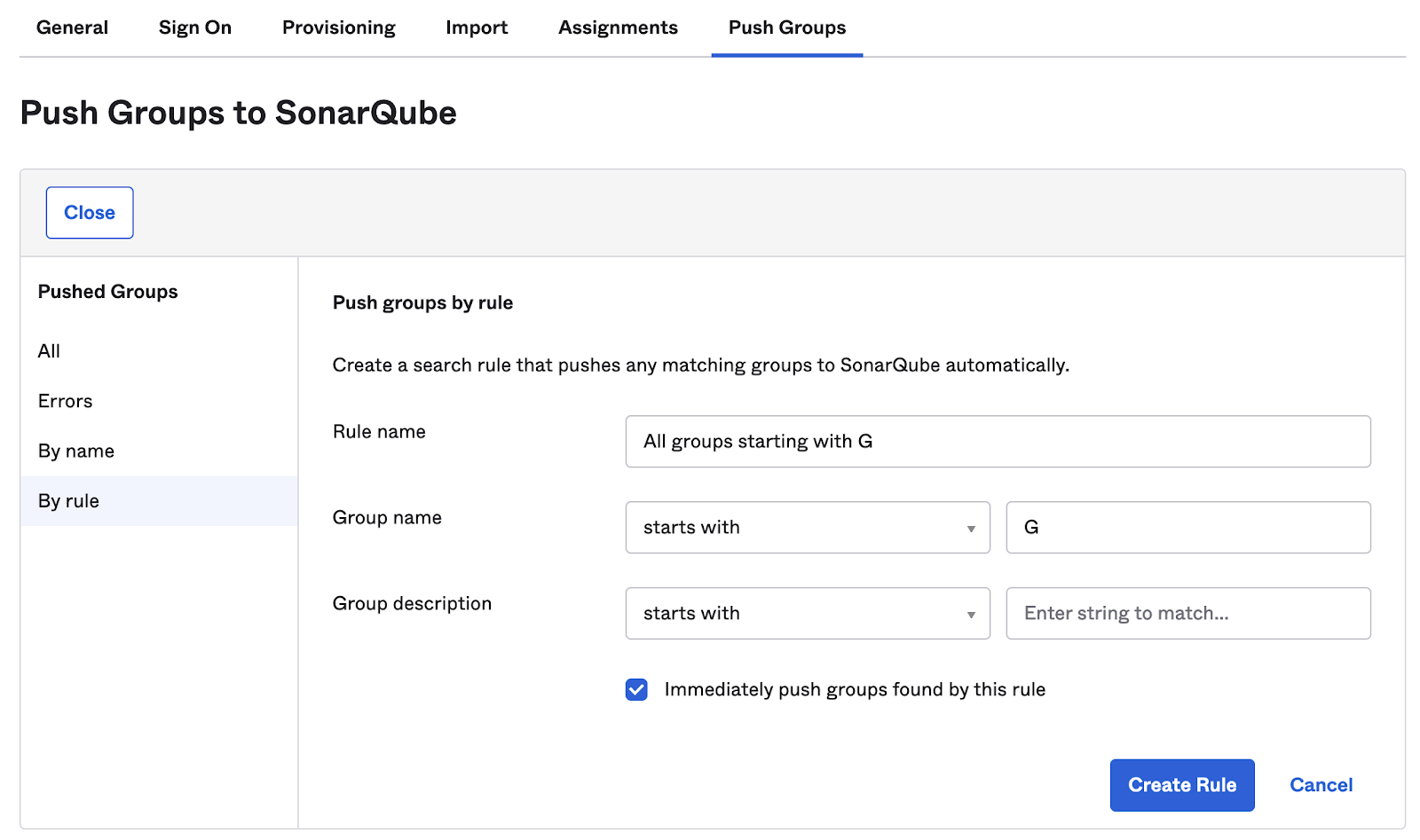

   2. Create a rule to match multiple groups at once. Click + Push Groups > Find groups by rule, give it the name and the criteria of your choice, then click Create rule. Note that Okta does not support regular expressions here and that matching groups are immediately provisioned when the rule is created.

1. To check that the SCIM connection is valid, click on Test Connector Configuration. A green checkmark indicates that all the fields are properly filled.

2. Click Save.

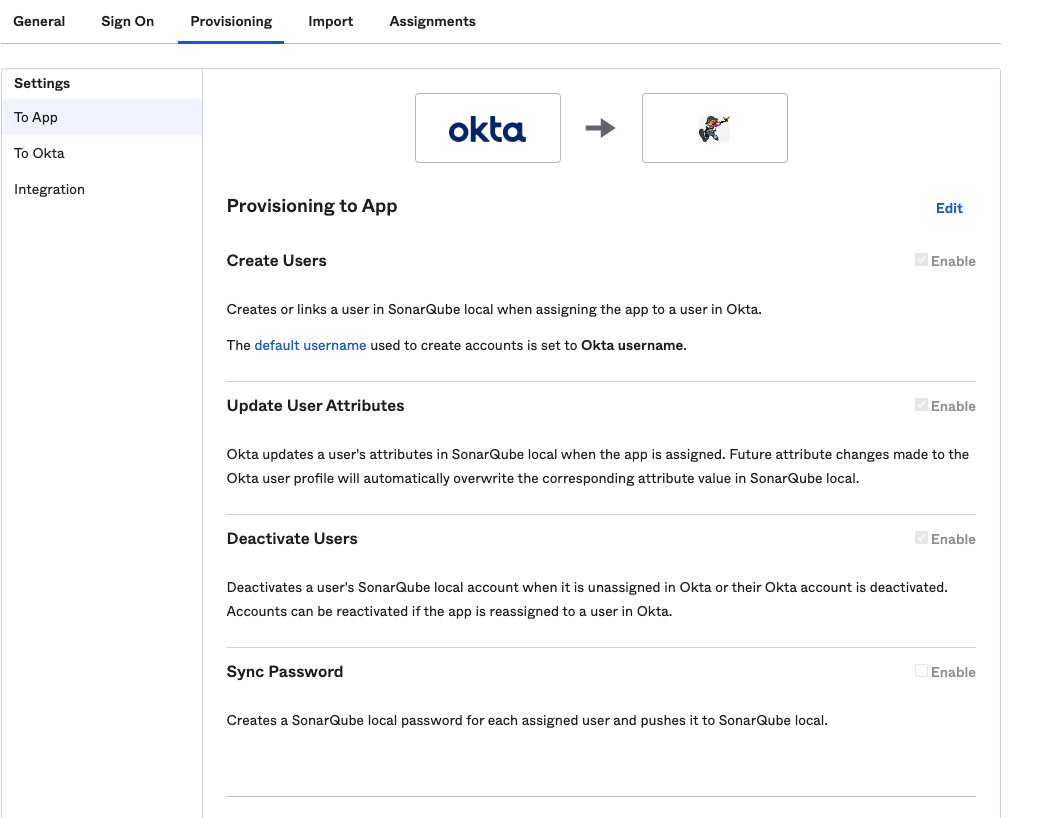

3. In the next screen, click Edit and check the Create Users, Update User Attributes and Deactivate Users provisioning options.

1. Click Save. Okta users will be automatically provisioned with SonarQube Server.

Note that if a user gets suspended in Okta, the corresponding user account remains unchanged in SonarQube Server.

Provisioning already assigned users

Users that are assigned before SCIM is enabled are not automatically provisioned. In the UI, an exclamation mark is displayed next to their names in the Assignments tab:

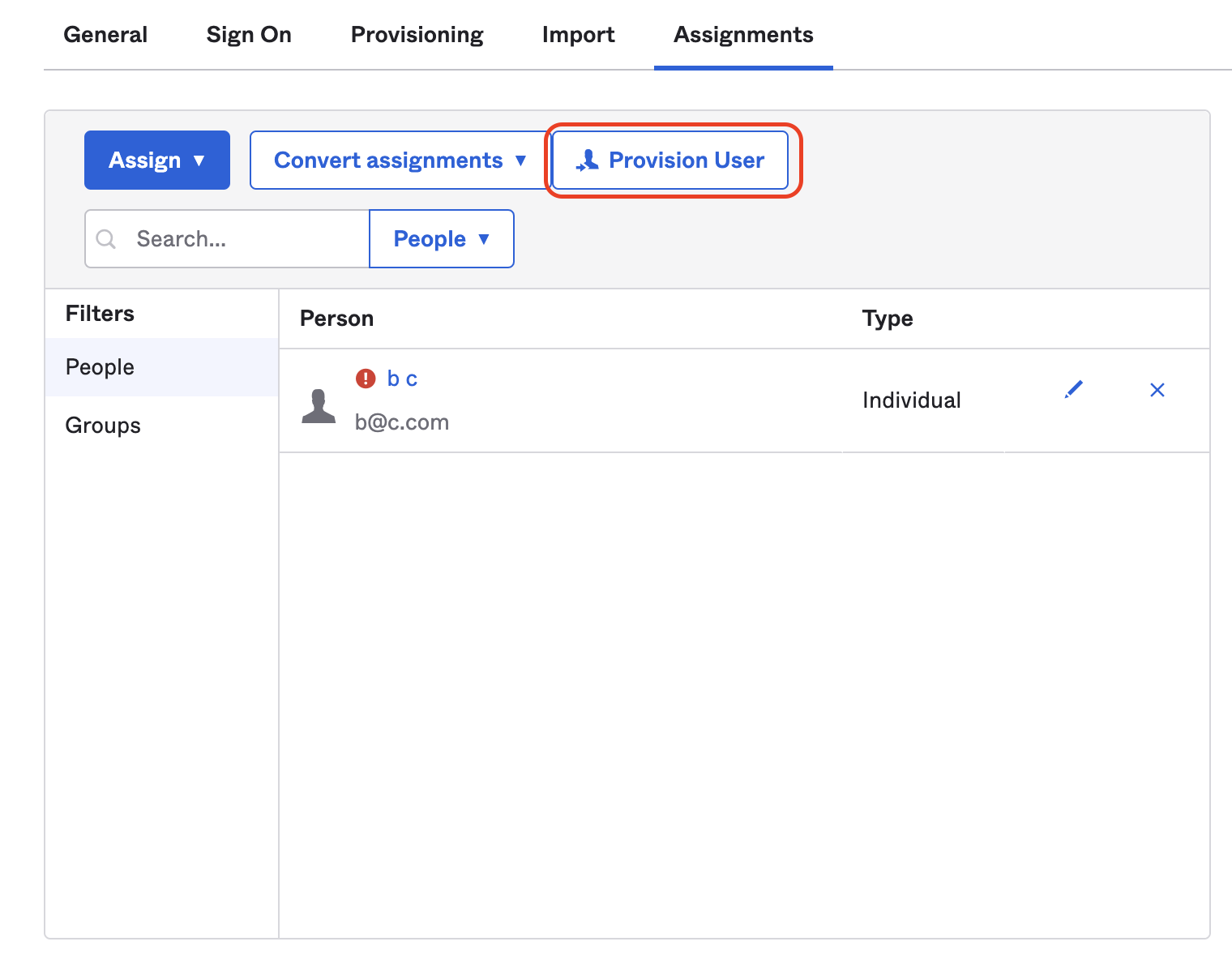

To force the provision of these users, click on Provision User. The exclamation mark should disappear, meaning that the users have been provisioned.
